Merk:

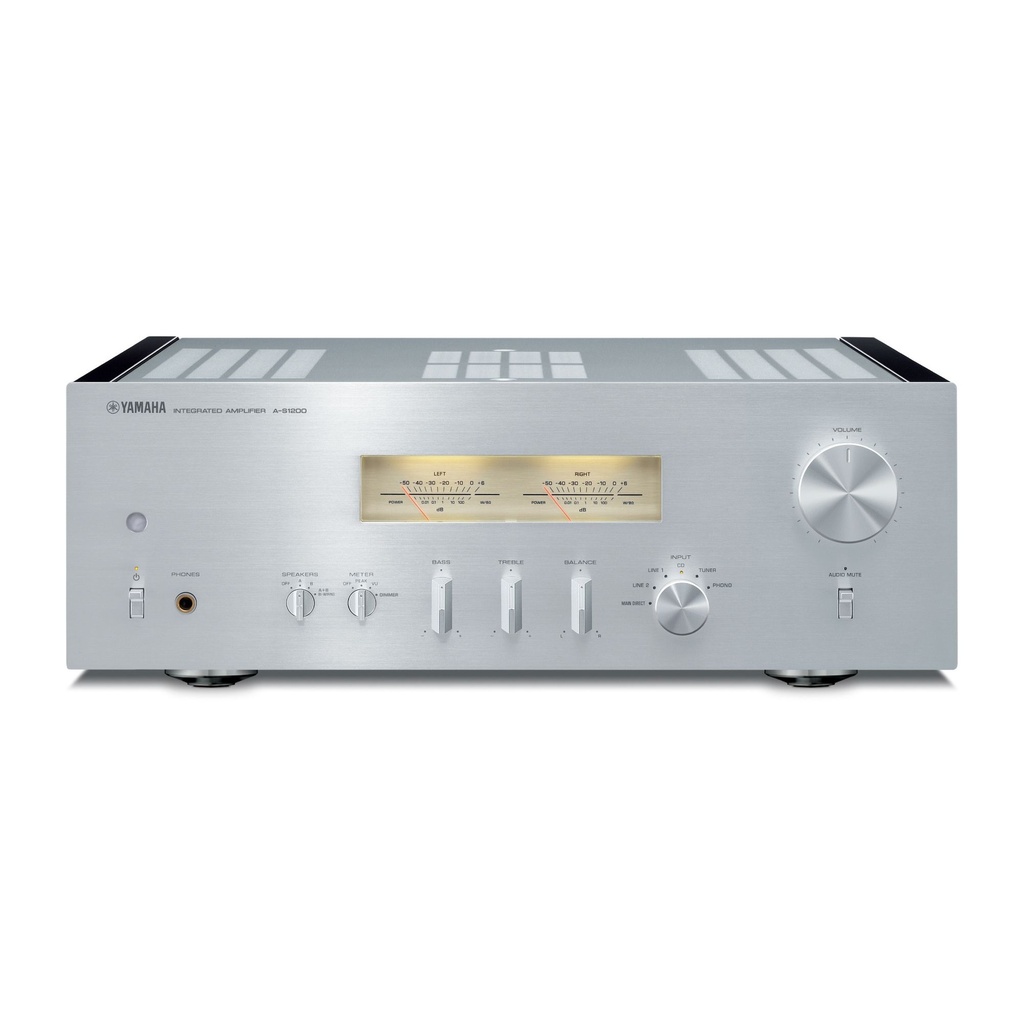

Yamaha
|
|
DIMENSIONS:
435×157×463 mm; 17-1/8" x 6-1/8" x 18-1/4"
|
|
FREQUENCY RESPONSE:
+0 / -3 dB (5Hz-100kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)
|
|
Weight:
22.0 kg; 48.5 lbs
|
|
Signal to Noise Ratio:
PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
|
|
Input sensivity:
[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms
|
|
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe):
160 W + 160 W
|
|
High Dynamic Power/Channel (8/6/4/2 ohms):
105/135/190/220 W
|
|
Damping Factor:
≧ 250 (1 kHz, 8 ohms)
|
|
RIAA Equalization Deviation:
＋/-0.5 dB (PHONO (MM/MC))
|
|
Rated Output Power:
[20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
|
|
Total Harmonic Distortion (20Hz to 20kHz):
[Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms）
|
|
Transformer:
625VA (Toroidal)
|
