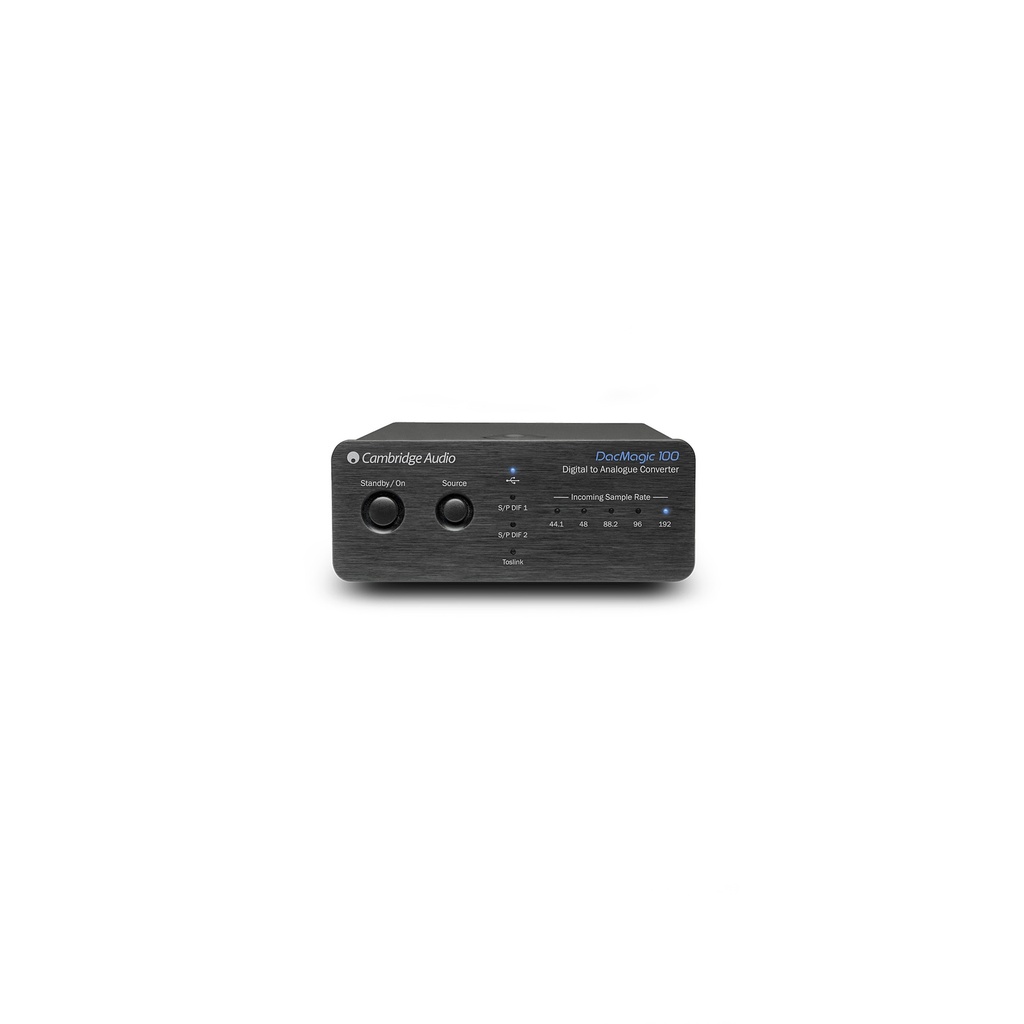

Cambridge Audio DacMagic 100
Generally the digital to analogue converter found in typical digital devices is pretty poor and won’t extract the truest quality of audio from your sources. The DacMagic 100 works by taking a direct digital audio signal from your device to bypass its soundcard or DAC. It then digitally processes the audio signal using our custom designed technology, dramatically improving sound quality and reducing distortion. This results in greater detail, sparkling clarity and a deeper scale to all of your audio.
Thanks to a Wolfson 24-bit DAC, a 24-bit/96kHz driverless USB Audio 1.0 input and S/PDIF and TosLink digital inputs, the DacMagic 100 takes the sound from your computer, iPod, TV and other digital devices and adds detail, depth and added clarity to give you a true audio experience.
| Brand: Cambridge Audio |
| DAC: Wolfson WM8742 24-bit DAC |
| MAX POWER CONSUMPTION: 5W |
| DIMENSIONS: 106 x 46 x 130mm (4.1 x 1.8 x 5.1") |
| FREQUENCY RESPONSE: 20Hz to 20kHz (±0.1dB) |
| Weight: 0.5Kg (1.1 lbs) |
| BOX CONTENTS: DacMagic 100 Digital to Analogue Converter, Quick Start Guide, Safety Guide, PSU (12V DC / 2A), Adapter, USB cable |
| THD @ 1Khz 0dBFs: <0.0025% 24-bit |
| THD @ 1kHz -10dBFs: <0.0025% 24-bit |
| THD @ 20kHz 0dBFs: <0.0025% |
| Signal to Noise Ratio: -113dBr |
| Total correlated jitter: <130pS |
| Crosstalk @ 1kHz: < -130dB |
| Crosstalk @ 20kHz: < -112dB |
| Output impedance: <50ohms |
| Max. output level (unbalanced): 2.3V rms |
| Digital input word widths supported: 16-24bit |
| Digital input sampling frequencies supported: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz |
| Colour: Black or silver |
