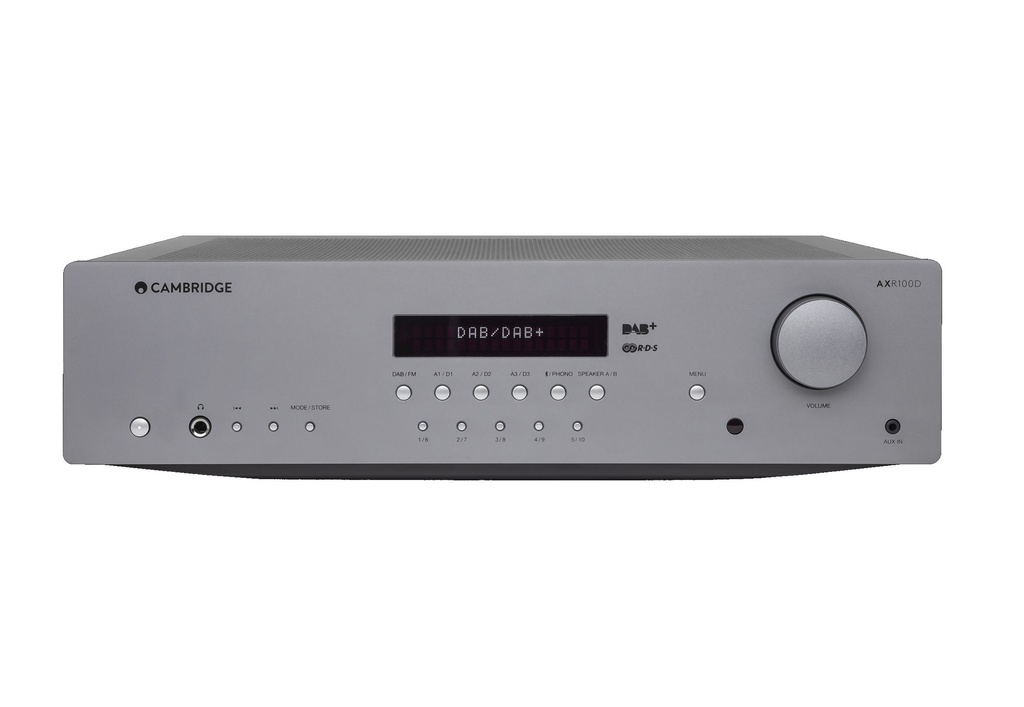

Cambridge Audio Stereo receiver AX-
With 100 watts of power and DAB+ / FM tuner too, AXR100D is an amp to be taken seriously – thanks to an integrated phono stage for easy connection of a turntable, and Bluetooth to play music wirelessly from a smartphone. A dedicated subwoofer output for driving bass, and two sets of speaker outputs add to R100D’s appeal, while plenty of sockets front and rear build on that versatility.
100 Watts per channel – perfect for driving different sizes of speakers including floorstanders, ideal for medium – large rooms
Integrated DAB+ / FM Tuner – with RDS & 40 station presets
Built-in MM Phono Stage – plug & play a turntable, no other boxes required
Built-in Bluetooth 5.0 – easy wireless connection to smartphones etc.
Slim elegant design – classic hi-fi design with stylish white LED display

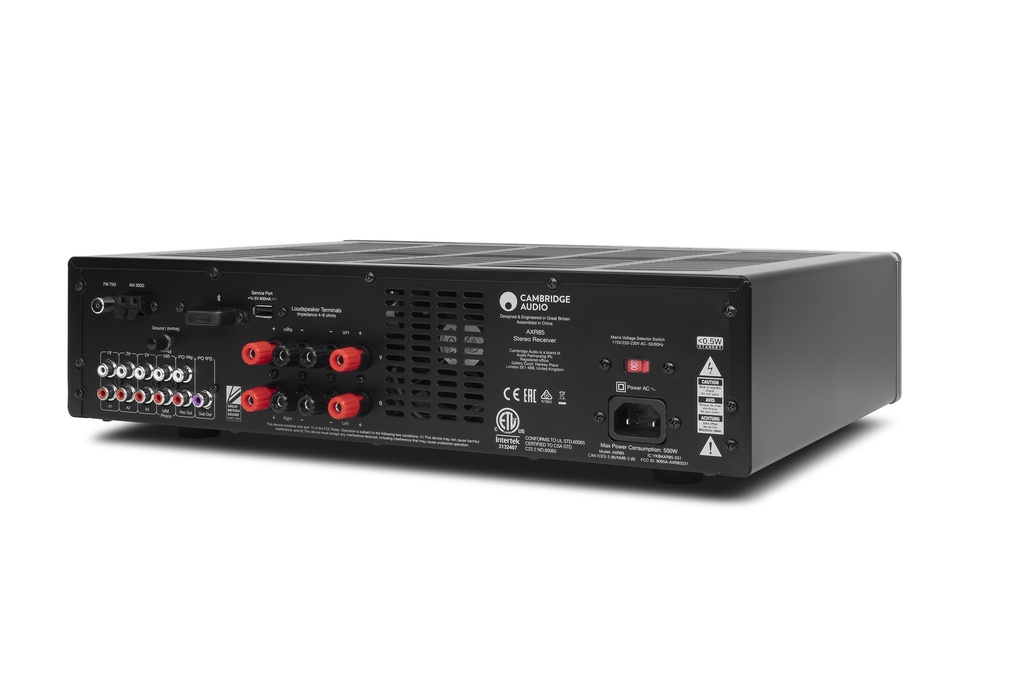

Digital & Analogue Inputs – plenty of rear connectors for audio sources
Full-size headphone jack & Aux-In – on front panel for convenience
| Brand: Cambridge Audio |
| Radio: FM, DAB+ |
| DIGITAL AUDIO INPUTS: PCM 16-24bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz |
| MAX POWER CONSUMPTION: 550W |
| STANDBY POWER CONSUMPTION: <0.5W |
| DIMENSIONS: 110 x 430 x 340mm (4.3 x 16.9 x 13.4”) |
| FREQUENCY RESPONSE: 5Hz - 50kHz |
| BLUETOOTH: 5.0 A2DP/AVRCP supporting SBC |
| Weight: 8.1kg (17.8lbs) |
| BOX CONTENTS: AXR100D Stereo Receiver, Power Cable, Remote Control, 2 x AAA Batteries, FM/DAB antenna |
| POWER OUTPUT: 100 watts (into 8Ω) |
| THD (unweighted): <0.015% @ 1kHz, 80% of rated power <0.15% 20Hz – 20kHz, 80% of rated power <0.1% 20Hz – 20kHz @ 10W |
| S/N ratio (ref 1W): >82dB (unweighted) |
| Input impedances: 47k ohms |
| Power Amp damping factor: > 50 |
| Bass/Treble controls: Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz |
| Phono Stage Signal/Noise Ratio: 60dB typical (FM) / 90dB typical (DAB) |
| Subwoofer output: 200Hz 2nd order L+R Level follows volume setting |
| Tuner: European DAB (174.928-239.200kHz) FM (87.5-108MHz) |
| ARIAL INPUTS: FM/DAB+ 75 ohms, Coaxial antenna |
| Distortion (Tuner): <0.4% @ 1kHz 50kHz deviation (FM mono) / <0.05% @ 1kHz (DAB) |
