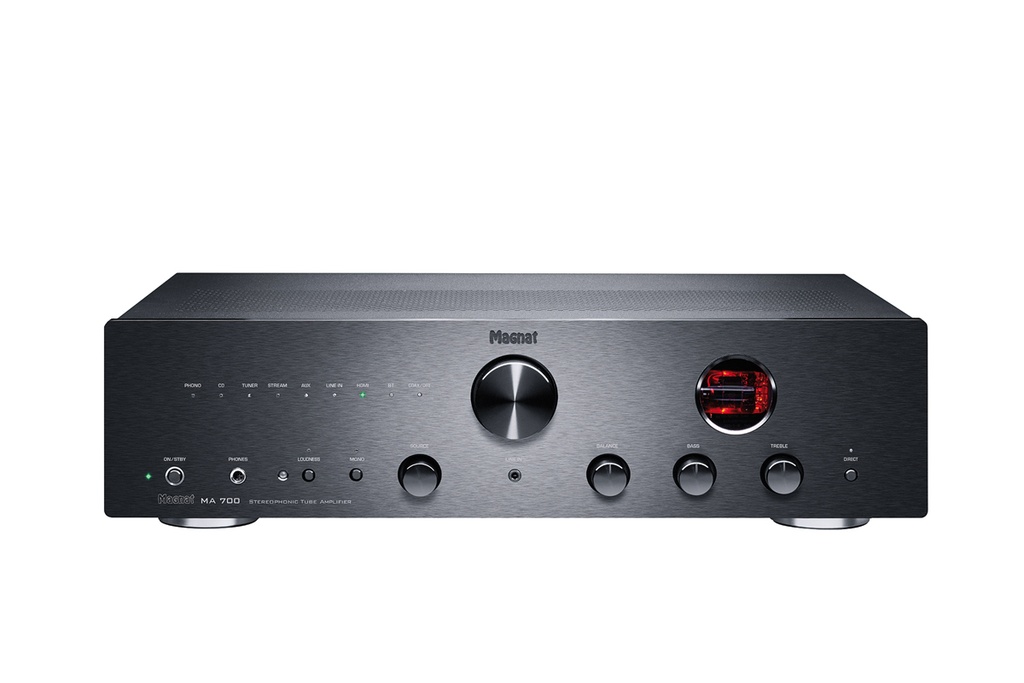

Magnat amplifier ma700 black
Magnat MA 700 - the pure doctrine of good sound
This is why our brand new MA 700 stereo amplifier offers the incomparable combination of tube technology for captivating sound and robust transistor power amplifiers, so that even larger speakers can be used without any problems. Beyond that, however, we have given the MA 700 everything it takes to be able to reproduce all your diverse media. In addition to all imaginable analogue and digital inputs as well as Bluetooth, this also includes an HDMI input. And that makes our amplifier a real all-rounder.
| Brand: Magnat |
| DIGITAL AUDIO INPUTS: Supported bit depth: 16/24bits coaxial (cinch) Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz optical (Toslink™) |
| MAX POWER CONSUMPTION: Maximal 300 W s0 5 |
| DIMENSIONS: Remote Control: 45 x 175 x 20 mm Main unit: 433 x 116 x 300 mm Remote Control: 45 x 175 x 20 mm |
| FREQUENCY RESPONSE: Subsonic Filter : 16 Hz, 18 dB/Oct. CD/Streamer/Aux/Line 5 Hz – 100 kHz (-3 dB) 20 Hz – 20 kHz (+/- 0,3 dB) Phono 20 Hz – 20 kHz (+/- 0,8 dB) |
| BLUETOOTH: Bluetooth® 5.0 / Qualcomm aptX® |
| Weight: 7.4 kg |
| Input sensivity: CD/Tuner/Aux/Line/Tape: 470 mV/100 kΩ Phono MM: 5 mV/47 kΩ |
| Principle: Sturdy metal housing with solid aluminum front panel and operating elements Stereo hybrid amplifier with transistor and tube technology HDMI input for seamless integration of TV and all connected sources Selected tube already burned-in for the best sound 2 x 70 watts RMS output, 250 watts system output Extensive connections, digital, analogue and Bluetooth aptX |
| Amplifier: High-capacity filter/electrolytic capacitors Standby power supply for low power consumption in standby mode < 0,5 watts Elaborate mains adapter with separately stabilised supply voltage for the individual circuits Shielded toroidal transformer Discrete Class A/B power amplifier Power output: 70 watts of sine power per channel at 4 ohms and 250 watts of maximum pulse power |
| Highlights: Switchable loudness function (aurally compensated volume correction) Display of the selected input via LEDs with with dimming function (2 stages) Headphone output with high-quality 6.3 mm jack socket Mono switch (for analog sources) Speaker terminal with solid, insulated screw terminals that are capable of accommodating large cable cross-sections Stable feet with damping rubber insert Solid aluminium controls System remote control for all functions Sturdy full-metal enclosure with solid, brushed aluminium front |
| Pre-amplifier: Preselected and burned-in tubes Record Out fixed level output Record Out fixed level output Low-noise tube preamplifier with ECC 81 tube Four analogue high-level inputs High/low tone control, can be switched off via a direct function Sub out connecting for use of an external active subwoofer Bluetooth® input (5.0) supports the high-end audio standard Qualcomm aptX® High quality digital-to-analogue converter Two digital inputs for sampling frequencies up to 192kHz/24bits HDMI® with ARC and CEC function (volume can be controlled via TV remote control) Additional 3.5 mm audio input on the front panel for connecting portable devices MM-phono preamplifier with low-noise operational amplifiers and subsonic filters |
