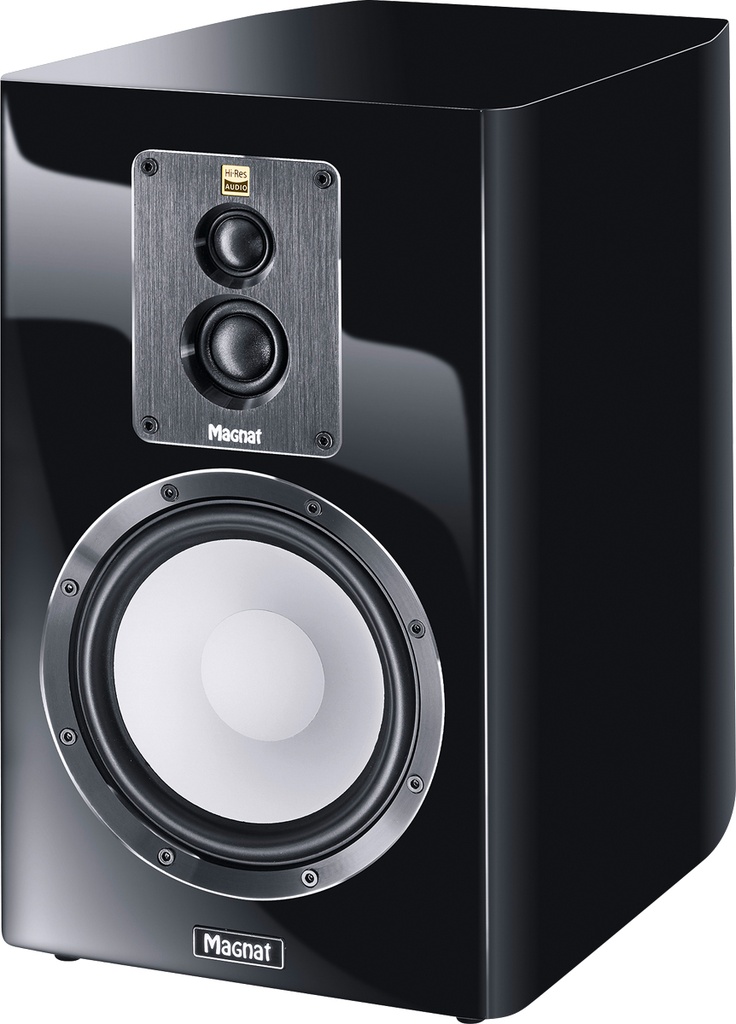

MAGNAT Signature 903 PIANO BLACK /
All the components of the Signature 900 loudspeakers have been carefully selected, arranged and tuned in a time-consuming process. The chassis alone have undergone numerous measurements, always with the help of the laser-assisted Klippel measuring system in order to achieve absolute perfection.
The heart of the fabulous high-frequency reproduction is our new Hi-Res module with two, yes two fmax tweeters. A 30 mm dome with a particularly wide bead allows it to operate with a low crossover frequency and therefore connect perfectly to the mid-range unit. The additional 20 mm super dome tweeter is the basis for extended frequency response to beyond 50 kHz. It also displays excellent all-round dispersion characteristics. In this combination, the module is certified with the Hi-Res Seal by the Japan Audio Society.
| Brand: Magnat, Demo winkel model |
| DIMENSIONS: 225 x 370 x 352 mm |
| FREQUENCY RESPONSE: 30 - 55000 Hz |
| Impedance: 4 – 8 Ohms |
| DRIVERS: 6.5“ woofer-midrange 0.75" super-tweeter 1.2" dome-tweeter |
| Principle: 3 way bass reflex |
| Power Handling (RMS/Max.): 120 / 180 watts |
| Sensitivity (2.8V/1m): 91db |
| Recommended Amplifier Output: >20W |
| Crossover Frequencies: 2.400 Hz/17.500 Hz |
