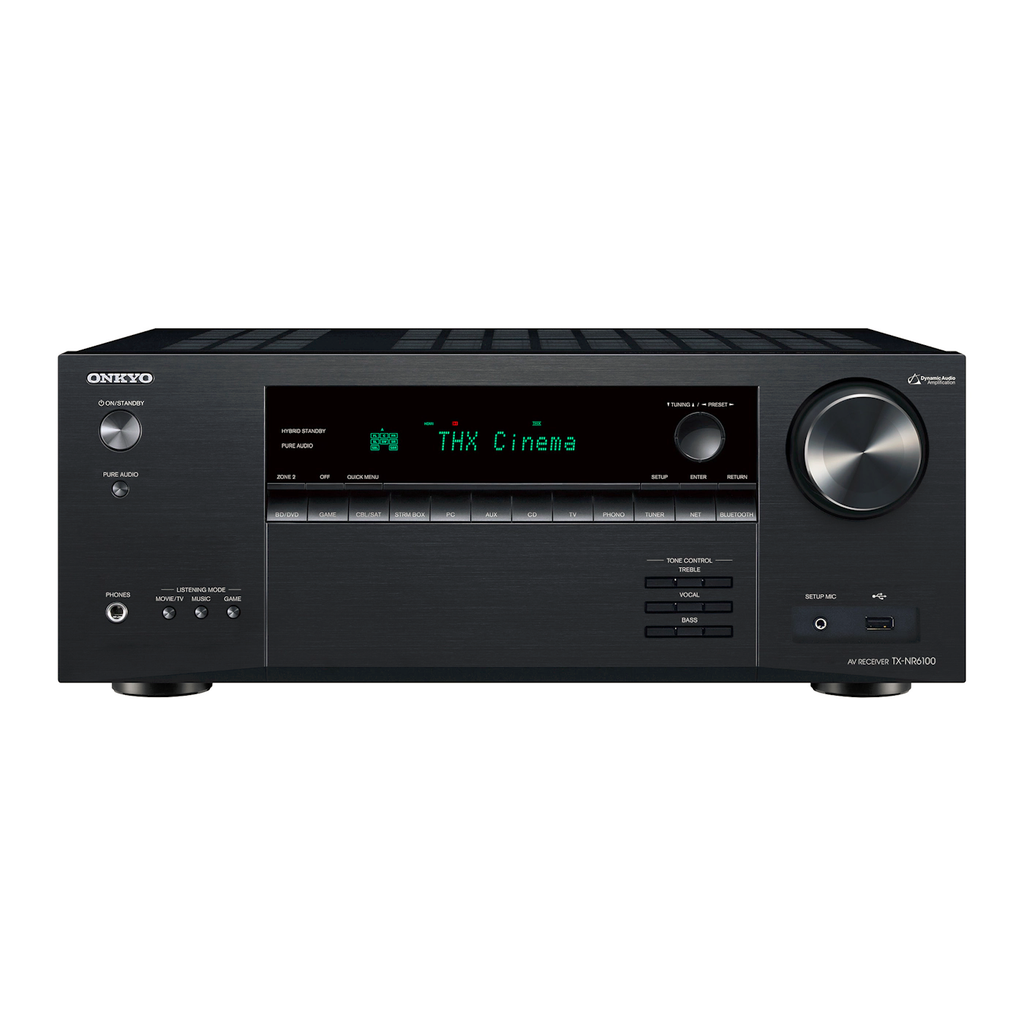

ONKYO AV RECEIVER TX-NR6100-BLACK
7.2-Channel THX Certified AV Receiver, the Onkyo TX-6100 7.2-Channel AV Receiver delivers precision sound and images with an emphasis on an enhanced gaming experience.
This SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your living room.
| Brand: Onkyo |
| Weight: 21.7 lb (9.8 kg) |
| Dimensions: 17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm) |
| Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Power output (All channels): 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Dynamic power: 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, half power) |
| Input sensitivity and impedance: 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
| Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out) |
| Tone control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio: 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| Speaker impedance: 4–16 ohms |
| Power consumption (operating): 635 W |
| Power consumption (standby): 0.1 W |
