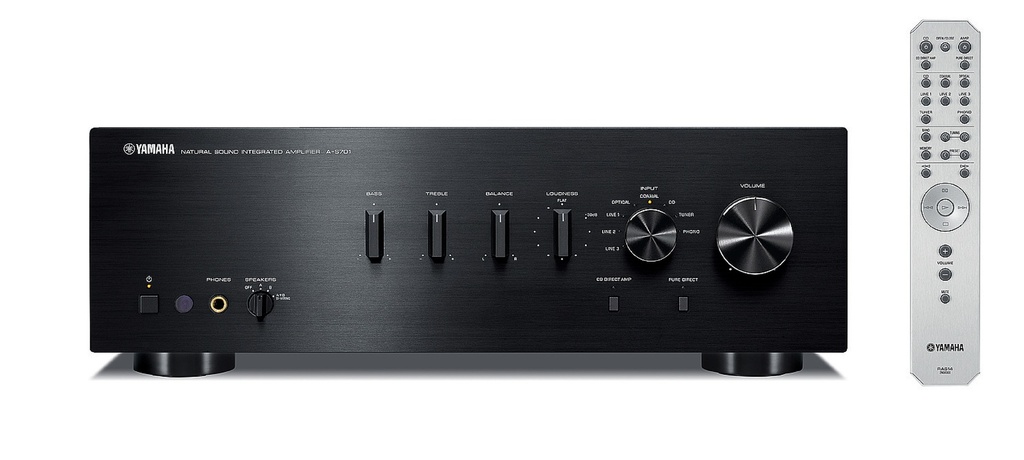

Yamaha Versterker A-S701 Zwart
Geïntegreerde versterker met extreem zuiver geluid en veel kracht. De digitale ingangen zijn een extra voordeel.
ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
I/O (input to output) Direct Symmetrical Design
ART (Anti-Resolution and Tough) Base
Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
160W x 2 (max), 100W x 2 (RMS) high power output
CD Direct Amplification and Pure Direct
Continuous Variable Loudness Control
Gold-plated speaker terminals and RCA terminals
Digital audio inputs for TV or Blu-ray Player
Connection for YBA-11 Bluetooth Wireless Adapter
Simple yet sophisticated design (aluminium front panel and knobs)
Auto Power Standby
| Merk: Yamaha |
| STANDBY POWER CONSUMPTION: 0.5 W |
| DIMENSIONS: 435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” |
| FREQUENCY RESPONSE: 10 Hz-100 kHz +/-1.0 dB |
| Weight: 11.2 kg; 24.7 lbs. |
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 100 W + 100 W (0.019% THD) |
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe): 160 W + 160 W |
| High Dynamic Power/Channel (8/6/4/2 ohms): 140/170/220/290 W |
| Damping Factor: 240 |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz): 0.019% (50 W/8 ohms) |
| Signal-to-Noise Ratio (CD): 99dB (input shorted, 200 mV) |
| Audio In / Out: 8 / 2 |
| Digital input: Yes (optical / coaxial) |
| Subwoofer Out: Yes |
| Pure Direct: Yes |
| DC out: Yes |
| ToP-ART: Yes |
| Power Management (Auto Power Standby): Yes |
| Switchable CD Direct Amplification: Yes |
